Detailed description
Combined punching and shearing machine and mechanical profile punching and shearing machine combine the functions of punching, shearing plate angle steel shearing machine, profile shearing, etc. They have the advantages of light weight, small volume, low noise, etc. They are processing equipment for modern machinery manufacturing industries such as metallurgy, bridge, communication, power, etc.

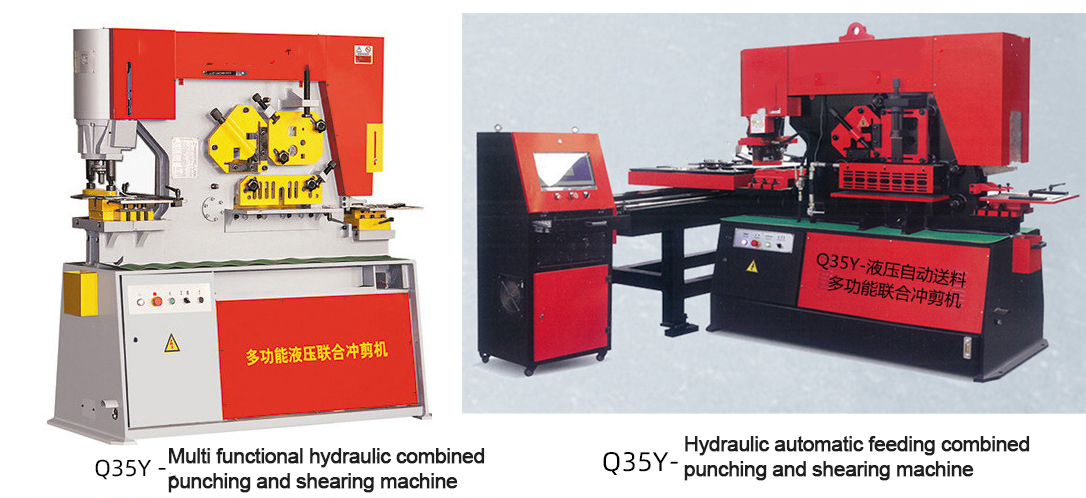

The combined punching and shearing machine of our company is hydraulically driven, capable of shearing and punching the square steel, round steel, angle steel, channel steel and I-beam, and is equipped with a shearing and blocking device
Technical parameters of Q35Y hydraulic multi-function combined punching and shearing machine
型 号 | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 |
冲压力（T） | 55 | 75 | 110 | 140 | 200 | 250 |
可剪最大板厚（mm） | 16 | 20 | 25 | 30 | 40 | 50 |
板料强度 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
剪切角 | 7 | 8 | 8 | 8 | 9 | 9 |
一次行程剪板尺寸（厚×宽）（mm） | 16×250 8×400 | 20×330 10×480 | 25×330 16×600 | 30×335 20×600 | 35×400 25×700 | 40×400 30×750 |
滑块行程（mm） | 80 | 80 | 80 | 80 | 80 | 80 |
行程次数 | 8 | 8 | 8 | 6 | 10 | 10 |
喉口深度（mm） | 300 | 355 | 400 | 600 | 600 | 600 |
冲孔厚度
（mm） | 16 | 20 | 25 | 26 | 35 | 40 |
最大冲孔直径（mm） | 25 | 30 | 30 | 38 | 40 | 40 |
主电机功率（KW） | 4 | 5.5 | 7.5 | 11 | 15 | 18 |
外形尺寸 | 1640×730×1770 | 1860×800×1900 | 2355×960×2090 | 2860×1040×2300 | 2920×1240×2350 | 3000×1440×2450 |
机器重量（kg） | 1750 | 2400 | 4800 | 6350 | 9200 | 12800 |
Note: If the parameters in this table are inconsistent with the machine tool data, the actual data of the machine tool shall prevail. The Company reserves the right of final interpretation.
