Performance characteristics:
This series of hydraulic press has a wide range of versatility and is suitable for the processing and molding of plastic materials, such as extrusion bending, folding, stretching, etc. At the same time, it is also suitable for pressing and molding of various plastic and powder products. In addition, it can also be used for correction, pressing and shaping of products.

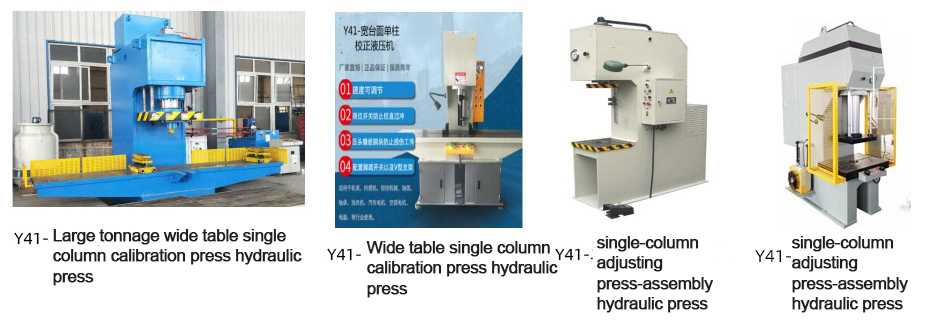

Y41 Single column correction and press fitting hydraulic press parameters
项 目 | 单位 | Y41-10 | Y41-16 | Y41-25 | Y41-40 | Y41-63 | Y41-100 | Y41-160 | Y41-250 |
公称压力 | KN | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2500 |
滑块行程 | mm | 250 | 350 | 350 | 360 | 500 | 500 | 500 | 500 |
滑块下平面距工作台的最大距离 | mm | 400 | 500 | 630 | 550 | 800 | 800 | 1000 | 1000 |
工作台尺寸（左右×前后） | mm | 360×360 | 650×500 | 575×560 | 1000×480 | 800×650 | 800×700 | 650 | 660 |
液体最大工作压力 | Mpa | 12 | 13 | 16 | 25 | 25 | 25 | 800 | 800 |
滑块下行速度 | mm/s | 45 | 30 | 40 | 75 | 40 | 27 | 24 | 23 |
滑块回程速度 | mm/s | 40 | 60 | 80 | 80 | 50 | 40 | 65 | 65 |
喉 深 | mm | 200 | 300 | 350 | 320 | 350 | 350 | 350 | 360 |
外形尺寸（长× 宽×高） | mm | 1100×800×1800 | 1100×850×2100 | 950×1480×2360 | 1500×1100×2500 | 1600×1200×2600 | 1800×1400×3000 | 2000X1340 X3100 | 2000X1767 X3310 |
电机功率 | KW | 3 | 4 | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 |
Note: If the parameters in this table are inconsistent with the machine tool data, the actual data of the machine tool shall prevail. The Company reserves the right of final interpretation.
