2-WC67K-800/9000 hydraulic double machine linkage CNC bending machine

Performance characteristics:

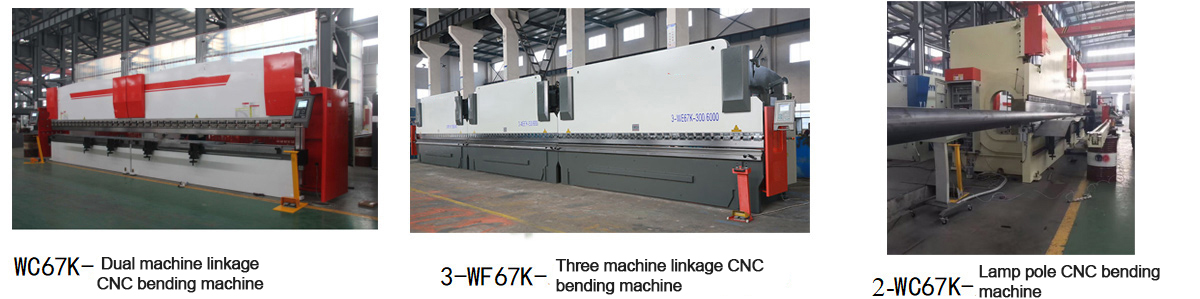

1. 2-WC67K/WF67K series bending machine can realize the linkage of two machines and multiple machines through linkage device;

2. The single machine still has all the high standard configuration performance of WC67K series electro-hydraulic CNC bending machine;

3. The two stand-alone machines are independent from each other, which can be linked or used separately to improve production efficiency;

4. Double click linkage bending machine is applicable to the processing of ultra long workpieces;

5. It is widely used in engineering machinery, lighting poles, pipelines and other industries.

Technical parameters of 2-WF67Y double machine linkage bending machine:

Specification and model	nominal pressure(KN)	Workbench length(mm)	Distance between columns(mm)	throat depth(mm)	Slide stroke(mm)	Maximum opening height between workbench and slider(mm)	Main motor power(KW)	External dimensions(mm) 长×宽×高	weight(kg)
2-100/3200	2×1000	2×3200	2600	320	150	450	2×7.5	2×3740×1585×2670	2×8000
2-160/3200	2×1600	2×3200	2550	320	200	500	2×11	2×3740×2045×3080	2×10200
2-160/3600	2×1600	2×3600	2950	320	200	500	2×11	2×4140×2045×3080	2×11050
2-160/4000	2×1600	2×4000	3350	320	200	500	2×11	2×5530×2435×3650	2×11900
2-160/5000	2×1600	2×5000	4100	500	200	500	2×11	2×5530×2435×3650	2×16800
2-160/6000	2×1600	2×6000	5100	500	200	500	2×11	2×6530×2435×3630	2×23310
2-160/7000	2×1600	2×7000	6100	500	200	500	2×11	2×7530×2435×3630	2×28000
2-200/3200	2×2000	2×3200	2580	320	200	450	2×11	2×3400×2140×2600	2×15000
2-200/4000	2×2000	2×4000	3100	320	200	450	2×11	2×4100×2400×2650	2×17000
2-200/5000	2×2000	2×5000	4100	320	200	450	2×13	2×5100×2450×2700	2×19000
2-200/6000	2×2000	2×6000	5100	320	200	450	2×13	2×6100×2500×2900	2×23000
2-200/7000	2×2000	2×7000	6100	320	200	450	2×15	2×7100×2500×2900	2×29000
2-250/3200	2×2500	2×3200	2700	400	250	560	2×15	2×4000×2250×3660	2×19200
2-250/4000	2×2500	2×4000	3300	400	250	560	2×15	2×4800×2250×3660	2×20000
2-250/5000	2×2500	2×5000	4100	400	250	560	2×15	2×5800×2250×3660	2×22000
2-320/4000	2×3200	2×4000	3300	400	250	560	2×22	2×4060×2570×3760	2×22000
2-320/5000	2×3200	2×5000	4300	400	250	560	2×22	2×5060×2570×3760	2×24510
2-320/6000	2×3200	2×6000	5300	400	250	560	2×22	2×6060×2570×3760	2×27020
2-320/7000	2×3200	2×7000	6300	400	250	560	2×22	2×7060×2570×3760	2×37000
2-400/4000	2×4000	2×4000	3100	400	320	625	2×37	2×4050×3240×3880	2×29950
2-400/5000	2×4000	2×5000	4210	400	320	625	2×37	2×5050×3240×3880	2×37000
2-500/4000	2×5000	2×4000	3100	400	320	630	2×37	2×4090×2965×3920	2×32700
2-500/5000	2×5000	2×5000	4100	400	320	630	2×37	2×5090×2965×3920	2×39750
2-500/6000	2×5000	2×6000	5100	400	320	630	2×37	2×6090×2965×3920	2×46800
2-630/5000	2×6300	2×5000	4100	400	320	710	2×45	2×5050×4910×3980	2×67950
2-630/6000	2×6300	2×6000	5100	400	320	710	2×45	2×6050×4910×3980	2×75000

　　Note: If the parameters in this table are inconsistent with the machine tool data, the actual data of the machine tool shall prevail. The Company reserves the right of final interpretation.
