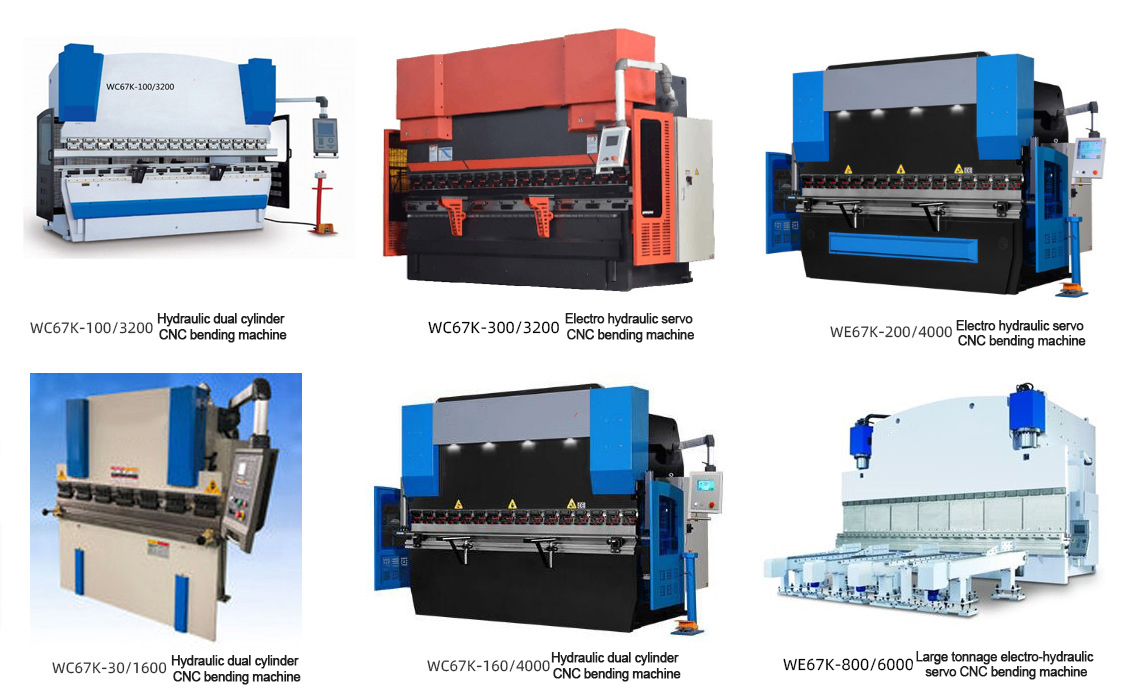

WE67K-200/4000 large tonnage electro-hydraulic servo CNC bending machine

Main parameters of WC67K hydraulic double cylinder CNC bending machine:

Specification and model	nominal pressure(KN)	Workbench length(mm)	Distance between columns(mm)	throat depth(mm)	Height of slider and workbench closure(mm)	Slide stroke(mm)	power(kw)	External dimensions Length x Width x Height (mm)	Machine weight(kg)
63/2500	630	2500	1880	250	320	100	5.5	2600×1600×2300	5000
63/3200	630	3200	2700	250	320	100	5.5	3300×1600×2300	6000
80/3200	800	3200	2600	320	380	120	7.5	3300×1700×2300	6800
80/4000	800	4000	3100	320	380	120	7.5	4100×1700×2300	7600
100/3200	1000	3200	2580	320	450	150	7.5	3300×1800×2400	7600
100/4000	1000	4000	3100	320	450	150	7.5	4100×1800×2400	8000
125/3200	1250	3200	2600	320	400	150	7.5	3260×1800×2500	8600
125/4000	1250	4000	3300	320	400	150	7.5	4060×1800×2500	9000
160/3200	1600	3200	2580	320	450	200	11	3300×2000×2600	11400
160/4000	1600	4000	3200	320	450	200	11	4000×2000×2600	13000
160/5000	1600	5000	4100	320	450	200	11	5100×2000×2500	14000
160/6000	1600	6000	4820	320	450	200	11	6100×2000×3200	18000
200/3200	2000	3200	2800	320	465	200	11	3300×2100×2800	13000
200/4000	2000	4000	3200	320	465	200	11	4100×2100×2900	15000
200/5000	2000	5000	4100	320	465	200	11	5100×2100×3000	19000
200/6000	2000	6000	5100	320	465	200	13	6100×2500×3000	23000
200/7000	2000	7000	6100	320	465	200	15	7100×2500×3000	29000
250/4000	2500	4000	3100	350	460	250	18.5	4100×2200×3500	20000
250/5000	2500	5000	4000	350	560	250	18.5	5100×2200×3500	23000
250/6000	2500	6000	5000	350	560	250	18.5	6100×2200×3500	27000
300/5000	3000	5000	4100	400	600	250	22	5100×2600×3500	27000
300/6000	3000	6000	5000	400	600	250	22	6100×2600×4200	30000
300/7000	3000	7000	5620	400	600	250	22	7100×2600×4400	35000
320/4000	3200	4000	3300	400	560	250	22	4060×2570×3760	23000
320/5000	3200	5000	4300	400	560	250	22	5060×2570×3760	27000
320/6000	3200	6000	5300	400	560	250	22	6060×2570×3760	31000
320/7000	3200	7000	5620	400	600	250	22	7100×2600×4400	38000
350/6000	3500	6000	5100	450	680	250	30	6100×2600×4200	33000
350/7000	3500	7000	5620	450	680	250	30	7060×2600×4500	40000
400/3200	4000	3200	2600	350	550	300	30	3300×2700×4000	27000
400/4000	4000	4000	3100	400	620	350	30	4100×2700×4100	31000
400/5000	4000	5000	4000	400	620	350	30	5100×2700×4200	35000
400/6000	4000	6000	4820	400	620	320	30	6100×2750×4200	39000
400/6500	4000	6500	5100	400	620	320	30	6500×2750×4300	44000
500/4000	5000	4000	3100	400	630	320	37	4090×2965×3920	33000
500/5000	5000	5000	4100	400	630	320	37	5100×2965×4400	48000
500/6000	5000	6000	4820	400	630	320	37	6100×3000×4700	53000
500/7000	5000	7000	5620	400	630	320	37	7100×3000×4900	62000
600/6000	6000	6000	4820	400	630	320	37	6050×3000×4900	66000
630/5000	6300	5000	4100	400	710	320	45	5050×3000×4900	68000
630/6000	6300	6000	5100	400	710	320	45	6050×3000×4900	75000
630/7000	6300	7000	6100	400	710	320	45	7050×3000×4900	82000

　　Note: If the parameters in this table are inconsistent with the machine tool data, the actual data of the machine tool shall prevail. The Company reserves the right of final interpretation.
