Main technical parameters

　　Model: SA-12 Motor Power: 1.5KW Processing Plate Thickness: 0.5-1.2mm Weight: 185kg Dimensions: 1100 * 650 * 950mm

　　Model: SA-16 Motor Power: 2.2KW Processing Plate Thickness: 0.8-1.5mm Weight: 230kg Dimensions: 1200 * 700 * 1000mm

　　This device is mainly used for edge wrapping and interlocking at the four corners of rectangular ventilation ducts. The main specifications are divided into two types: 0.5-1.2mm and 0.8-1.5mm for processing plate thickness.

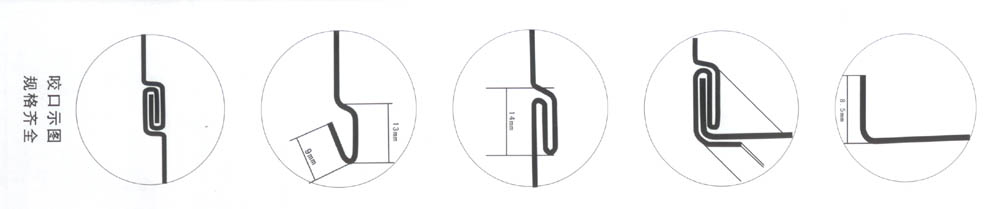

　　This device is mainly used for edge wrapping and interlocking at the four corners of rectangular duct elbow components, as shown in the diagram. The main specifications are divided into two types: processing plate thickness of 0.5-1.2 millimeters and 1.0-1.6 millimeters. Used in conjunction with corresponding specifications of joint biting machines.
